- Size: 14
- Place of Origin: Jinan
- Brand Name: YXH
- Model Number: 1325
- Weight: 11000.000 kg
Cofigurations:
4.5kw HQD air cooling spindle*2 and 6.0kw HQD spindle*2
Fuling inverter
Taiwan HIWIN Square linear guide #30
Helical rack 1.5M
Taiwan TBI ball crew
Leadshine servo motor and driver
Shanlong control system
German Rouist reducer
3.0kw dust collector
7.5kw air pump
New type heavy and stronger duty bed
Features:
1.Stable structure:Heavy steel welding structure, tempering effect treatment , solid and non-deformation.Selected various processing spindle , can be engraved, hollowed-out, cutting and milling work.
2.Good componets:Imported control system, imported spindle motor, simple and safe operation mode, advanced file handling function, ensure the speed and accuracy of operation.
3.Gantry type structure, fixed working table, can be processed on the material on the table. Y axis adopts double motor driver to ensure smooth movement; X axis and Y axis adopts high precision gear rack drive, high speed;
Z axis adopts high precision double automatic ball screw with high precision.
Packaging Details:
1.Outside package: Free-fumigation plywood box for export.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: BY SEA
We can offer EXW/FOB/CFR/CIF/DDU services. Shipped in 15-30 working days after payment.
Packaging Details:
1.Outside package: Free-fumigation plywood box for export.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: BY SEA
We can offer EXW/FOB/CFR/CIF/DDU services. Shipped in 15-20 working days after payment.
- Size: 14
- Place of Origin: Jinan
- Brand Name: YXH
- Model Number: 1325
- Weight: 11000.000 kg
Technical parameters:

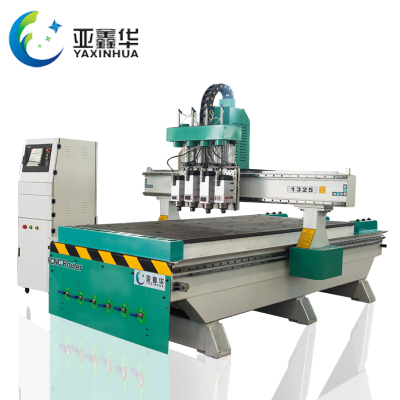

Model | YXH1325 Pneumatic system 3d cnc router |
Working area | 1300*2500*200mm effective working area |
Spindle | 4.5kw HQD air cooling spindle*2 and 6kw HQD spindle*2 |
Spindle speed | 0-18000rpm/min |
Inverter | Fuling inverter |
Control system | Shanlong suitable for Pneumatic system |
Motor and driver | Leadshine Servo Motor and driver |
Transmission | Taiwan TBI ball screw and HIWIN square linear guide rail |
Optional | 3.0kw Dust collector German Rouist reducer 7.5kw air pump |
Features | There is no ATC spindle but has the function of ATC machine More economy |
