- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 13
- Place of Origin: Jinan
- Brand Name: YXH
- Model Number: 1325
- Weight: 750.000 kg
Configuration
-1300*2500*200mm working area ( can be customized)
-4.5kw HQD air cooling spindle.
-5.5kw Fuling inverter
-Taiwan HIWIN square linear guide ( PMI for option)
-Taiwan TBI ball screw
-DSP handle controller
-Aluminum profile working table
-Top brand leadshine 860H driver and motor
Application:
1. Wood furniture industry
Such as wooden doors, cabinets, Tables,Chairs, cupboard doors, stair handrail, sofa legs,ect.
2. Advertising industry
such as sign making, acrylic engraving and cutting, Signage, Logo, Display board, advertising materials derivatives making, PVC,acrylic ect.
3. Mold industry
such as aluminum &metal molds, artificial marble, tombstone.
4. Artwork and decoration
such as Stateus engraving, gift box ect.
Packaging Details:
1.Outside package: Free-fumigation plywood box for export.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
- Size: 13
- Place of Origin: Jinan
- Brand Name: YXH
- Model Number: 1325
- Weight: 750.000 kg
Technical parameters

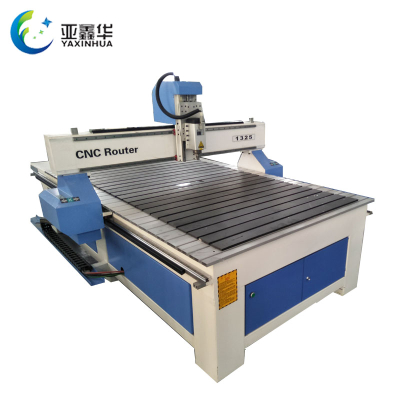

Model | YXH1325 wood cnc router machine |
Working area | 1300*2500*200mm effective working area |
Spindle | 4.5kw HQD air cooling spindle |
Spindle speed | 0-18000rpm |
Max working speed | 30000mm/min |
Inverter | 5.5kw Fuling inverter |
Control system | DSP control system |
Motor and driver | Leadshine 860H Motor and driver |
Lathe bed frame | Welded steel structure |
Table surface | Aluminum profile working table |
Transmission | Taiwan TBI ball screw and HIWIN square linear guide#25 |
Working voltage | AC380v/3ph/50hz(220V for optional) |
| Computer interface | USB |
| Software | Artcam&Alphacam&type3 |
Optional | 3.0kw Dust collector German Rouist reducer 5.5kw air pump |
