- Size: 13
- Place of Origin: Jinan
- Brand Name: YXH
- Model Number: 1325
- Weight: 800.000 kg
Configuration
1300*2500*200mm working area ( can be customized)
6kw HQD air cooling spindle
7.5kw Fuling inverter
Taiwan HIWIN square linear guide ( PMI for option)
Taiwan TBI ball screw
DSP handle controller
Vacuum and T-slot working table
Top brand leadshine 860H driver with stepper motor
Application :
1. Wood furniture industry
Such as wooden doors, cabinets, Tables,Chairs, cupboard doors, stair handrail, sofa legs,ect.
2. Advertising industry
such as sign making, acrylic engraving and cutting, Signage, Logo, Display board, advertising materials derivatives making, PVC,acrylic ect.
3. Mold industry
such as aluminum &metal molds, artificial marble, tombstone.
4. Artwork and decoration
such as Stateus engraving, gift box ect.
Our service:
1. Our factory has has 10 years of production experience, the machine can be customized according to your demand.
2. The machine parts adopt famous brands at home and abroad.
3. Perfect after-sales service and technical support.
4. Our price is more competitive.
- Size: 13
- Place of Origin: Jinan
- Brand Name: YXH
- Model Number: 1325
- Weight: 800.000 kg
Technical parameters

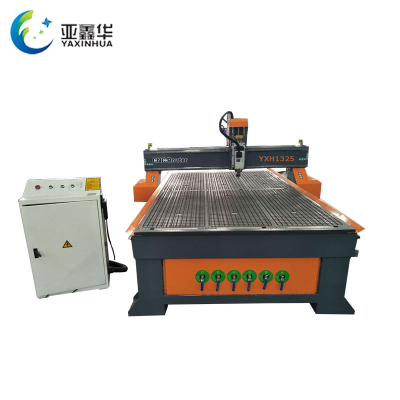

Model | YXH1325 wood cnc router |
Working area | 1300*2500*200mm effective working area |
Spindle | 6kw HQD air cooling spindle |
Spindle speed | 0-18000rpm |
Inverter | 7.5kw Fuling inverter |
Control system | DSP control system |
Motor and driver | Leadshine 860H Motor and driver |
Lathe bed frame | Welded steel structure |
Table surface | Vacuum&T-slot working table |
Transmission | Taiwan TBI ball screw and helical rack |
Guide rails | HIWIN square linear guide#25 |
Working voltage | AC380v/3ph/50hz(220V for optional) |
| Computer interface | USB |
| Software | Artcam&Alphacam&type3 |
Optional | 3.0kw Dust collector German Rouist reducer 7.5kw air pump |
